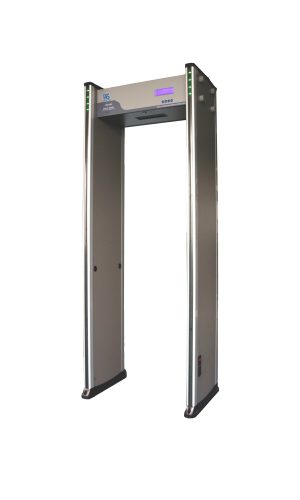

18 Zone Door Frame Metal Detector - RS600
Our RS600 comes with extra security features and exclusive multiple target pin pointing technique with 6 zone advance detection model that shows precise target location on the left, center and right side of the body from head to toe. It comes with the self-diagnostic program and does not require initial or periodic calibration. Its modular design makes it easy for maintenance and replacement.
- 18 mutual over-lapping detecting zones
- Simultaneous alarm from multi – zones
- Small LCD screen Display
- Password protected operating software
- LED Display Bar on both sides
General Paramerters
- Power Supply : AC85V – 265VV
- Working Frequency: 4khz to 8khz
- Standard External Size : 2200mm(H)*800mm(W)*580mm(D)
- Standard Internal Size : 2010mm(H)*700mm(W)*500mm(D)
- Package Size for Door Panel : 2290*560*180mm * 1ctn
- Package Size for Control Unit :760*380*260mm * 1ctn
- Gross Weight : 63Kgs
Operating Enviornment
- Storage Temperature : -20ºC to 60ºC
- Operating Temperature : 0ºC to 45ºC
- Relative Humidity : 20 to 95% non-condensing
6 Zone Door Frame Metal Detector Importer, Manufacturer and Supplier in India, 6 Zone Walk-Through Metal Detector Price in India, Delhi, Noida, Chennai, Bangalore, Goa, Punjab, Lucknow, Haryana, UP. Now Get 6 Zone Door Frame Metal Detector brand RobustScan, Smith, Safegate, Garrett etc.
Detailed Features
- 18 mutual over-lapping detecting zones, simultaneous alarm from multi-zones.
- Small LCD Display.
- Sensitivity Adjustable; Each zone has 256 sensitivity level, 0-255 adjustable.
- Sound & LED alarm; both side LED indicator, easily show where the metal is.
- Automatically count passengers and alarm times.
- Alarm strength indicator on control panel.
- Password protection, only the authorized person can operate.
- Harmless to human body; is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
- Easy assembly; designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
- Program self-diagnostic when power on, no need initial or periodic calibration.
- Using high density fireproof material.
- Modular design, easy for maintenance and replacement.
- Sensitivity test piece; One Rupee Coin, Omni Directional Detection.
- 4-8 hrs. power backup with battery (Optional)
